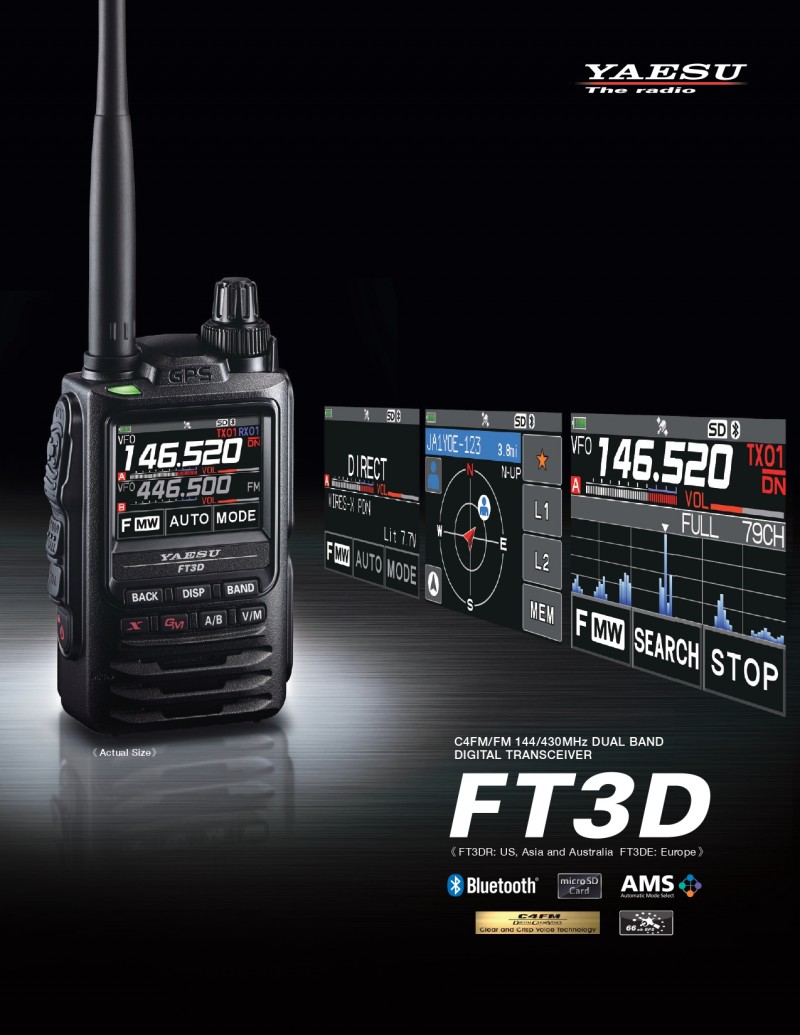

YAESU FT3DR C4FM/FM 144/430MHz Dual Band Digital Transceiver

============================================================

Features

·         Large capacity 1256 channel memory and twenty-four 100 channel memory banks

·         Illuminated keyboard that will permit easy operation in dark or poor lighting

·         Easy to use dual-axis knob allows convenient volume control and dial operation

·         Memory ALPHA TAG up to 16 characters

·         Built-in CTCSS, DCS, Pager (EPCS) function encode/decode enables Selective call features

·         DTMF Encode

·         DTMF Memory

·         ARS (Automatic Repeater Shift)

·         Built-in On/Off Timer, Automatic Power Off (APO) and Time-Out Timer (TOT)

·         Versatile Scanning

·         NOAA Weather alert : available in-service area*

·         GPS data output feature

·         External DC input

·         Password Lock function

·         Water Protection IPX5 Rating

============================================================

Specifications

GENERAL

Frequency Range :

A (Main) Band RX :

- 0.5 – 1.8 MHz (AM Radio)

- 1.8 – 30 MHz (SW Radio)

- 30 – 88 MHz (50 MHz HAM)

- 88 – 108 MHz (FM Radio)

- 108 – 137 MHz (Air Band)

- 137 – 174 MHz (144 MHz HAM)

- 174 – 222 MHz (VHF Band)

- 222 – 420 MHz (GEN1)

- 420 – 470 MHz (430 MHz HAM)

- 470 – 800 MHz  (UHF Band)

B (Sub) Band RX :

- 108 – 137 MHz (Air Band)

- 137 – 174 MHz (144 MHz HAM)

- 174 – 222 MHz (VHF Band)

- 222 – 420 MHz (GEN1)

- 420 – 470 MHz (430 MHz HAM)

- 470 – 580 MHz (UHF)

TX :

- 144 – 148 MHz or 144 – 146 MHz

- 430 – 450 MHz or 430 – 440MHz

Channel Steps : 5, 6.25, 8.33, 9, 10, 12.5, 15, 20, 25, 50, 100 kHz (8.33 kHz : only for Air Band, 9 kHz : only for AM Radio)

Frequency Stability : ±2.5ppm -20°C to +60°C

Emission Type : F1D, F2D, F3E, F7W

Supply Voltage :

*Nominal :

- 7.2V DC, Negative Ground (SBR-14LI)

- 7.4V DC, Negative Ground (FNB-101LI)

- 10.5 – 16V DC, Negative Ground (EXT DC JACK)

*Operating :

- 5.5 – 8.4V, Negative Ground (Li-ion Battery pack)

- 6 – 16V, Negative Ground (EXT DC)

- 10.5 – 16V DC, Negative Ground (EXT DC : for Charging)

- 3.6 – 4.5V DC, Negative Ground (with FBA-39)

Current Consumption :

- 140 mA (Mono band Receive)

- 170 mA (Dual band Receive)

- 86 mA (Mono band Receive, Standby)

- 120 mA (Dual band Receive, Standby)

- 67 mA (Mono band Receive, Standby, Saver On “Save Ration 1:10”)

- 67 mA (Dual band Receive, Standby, Saver On “Save Ration 1:10”)

- +18 mA (GPS On)

- +6 mA (Digital)

- 120 mA (Mono band Receive AM/FM Radio)

- 900 µA (Auto Power Off)

- 1.6A (5W TX, 144 MHz 7.2V DC)

- 1.9A (5W TX, 430 MHz 7.2V DC)

Operating Temperature : -20°C to +60°C

Case Size : 62 (W) x 110 (H) x 32.5 (D) mm (w/o SBR-14LI, knob, antenna & belt clip)

Weight (approx.: 289g w/SBR-14LI, antenna

Included : 2200mAh Li-Ion Battery (SBR-14LI), Battery Charger (SAD-25), Antenna, Belt Clip (SHB-13) and USB Cable

TRANSMITTER

RF Power Output :

- 5W/2.5W/1W/0.3W (@ Battery pack or EXT DC)

- 0.9W/0.3W (@ FBA-39)

Modulation Type :

- F1D, F2D, F3E : Variable Reactance Modulation

- F7W : 4FSK (C4FM)

Spurious Emission :

- At least 60 dB below (@ TX Power Hi, L3)

- At least 50 dB below (@ TX Power L2, L1)

RECEIVER

Circuit Type :

- AM, NFM : Double-Conversion Super heterodyne

- AM/FM : Direct-Conversion

Intermediate Frequencies :

- 1st : 58.05 MHz (AM, NFM A Band)

- 1st : 57.15 MHz (AM, NFM B Band)

- 2nd : 450 kHz (AM, NFM)

Sensitivity :

- 3 μV for 12 dB SN (0.5 – 30 MHz, @AM)

- 0.35 μV TYP for 12 dB SINAD (30 – 54 MHz, @NFM)

- 1 μV TYP for 12 dB SINAD (54 – 88 MHz, @NFM)

- 1.5 μV TYP for 12 dB SINAD (88 – 108 MHz, @WFM)

- 1.5 µV TYP fo 10 dB SN (108 – 137 MHz, @AM)

- 0.2 µV for 12 dB SINAD (137 – 140 MHz, @NFM)

- 0.16 µV for 12 dB SINAD (140 – 150 MHz, @NFM)

- 0.2 µV for 12 dB SINAD (150 – 174 MHz, @NFM)

- 1 µV for 12 dB SINAD (174 – 222 MHz, @NFM)

- 0.5 µV for 12 dB SINAD (300 – 350 MHz, @NFM)

- 0.2 µV for 12 dB SINAD (350 – 400 MHz, @NFM)

- 0.18 µV for 12 dB SINAD (400 – 470 MHz, @NFM)

- 1.5 µV for 12 dB SINAD (470 – 540 MHz, @NFM)

- 3 µV TYP for 12 dB SINAD (540 – 800 MHz, @NFM)

- 0.19 µV TYP for BER 1% (Digital Mode)

Selectivity : NFM, AM 12 kHz / 35 kHz (-6 dB / -60 dB)

AF Output :

- 700 mW (8 Ω for 10 % THD) Internal Speaker

- 300 mW (8 Ω for 10 % THD) External Speaker Jack

===========================================================
