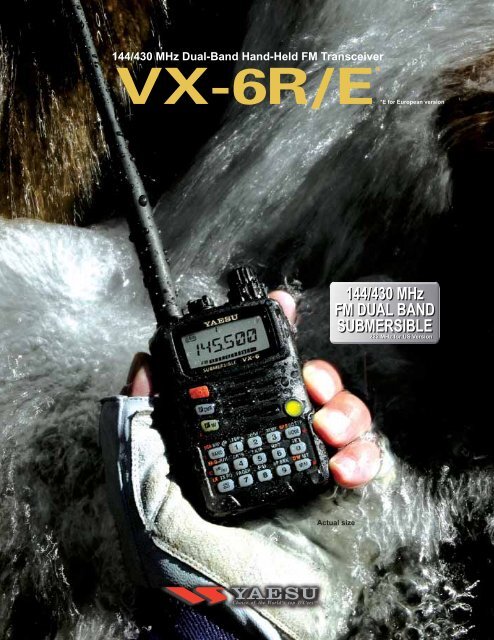

YAESU VX-6R 144/430MHz Dual Band Handheld FM Transceiver

============================================================

Ideal for severe field use! With wide-band reception, rugged and submersible design, the powerful EAI "man down" feature, and simple keyboard commands, the VX-6R/E* is loaded with features for the toughest outdoor applications!

Features

·         Direct Memory Recall feature provides One-Touch Stored Frequencies Access, just like on a Car Stereo!

·         Huge 900-channel Memory Capacity with 24 Memory Banks and Two "Special Memory" Groups.

·         Ergonomic Design is Ideal for Operation when Wearing Gloves

·         Outdoor-ready Features including Waterproof Rating, Emergency Automatic ID (EAI) system, and Weather Sensor Capability

·         Five Watts of Power Output, using High-Capacity Lithium-Ion Battery (supplied)

·         Outstanding Power-Management Features

·         Weather Sensor Capability

·         Wide-band Receiver Coverage for Catching All the Action!

·         Convenient Selective Calling and Paging Features!

·         Big-Radio Features in a Compact Package!

·         Performance Features for the Experienced Hand-Held User!

·         Versatile Scanning for the Monitoring Enthusiast!

============================================================

Specifications

GENERAL

Frequency Range :

- RX : 137 - 174 MHz (144 MHz HAM Band); 420 - 470 MHz (430 MHz HAM Band)

- TX : 144 - 146(148) MHz; 430 - 440(450) MHz

Channel Steps : 5/9/10/12.5/15/20/25/50/100 kHz

Frequency Stability : ±5 ppm @ -10 °C to +50 °C

Repeater Shift : ±600 kHz (144 MHz), ±1.6/5.0/7.6 MHz (430 MHz)

Emission Type : F2D, F3E

Antenna Impedance : 50 Ω

Supply Voltage (Negative Ground) :

- Nominal: 7.4 V DC, Negative Ground

- Operating: 5.0 ~ 16.0 V DC (EXT DC Jack)

- 11.0 ~ 16.0 V DC (EXT DC Jack while Charging)

Current Consumption (Approx. @7.4 V) :

- 150 mA (Receive)

- 60 mA (Standby, Saver Off)

- 20 mA (Standby, Saver On)

- 1 mA (ON Timer Activated)

- 200 mA (Auto Power Off)

- 1.6 A (5 W TX, 144 MHz)

- 1.8 A (5 W TX, 430 MHz)

Operating Temperature : –20°C to +60°C

Case Size : 58 (W) x 89 (H) x 28.5 (D) mm (w/o knob, antenna, and belt clip)

Weight : 270 g with FNB-80LI, and antenna

Included : Rechargeable Lithium Ion Battery Pack 7.4V 1.400mAh (FNB-80LI), Battery Charge (NC-72B), Antenna (YHA-67), Belt Clip, Hand Strap

TRANSMITTER

RF Power Output : 144 MHz/430 MHz; 5.0W (High), 2.5W (Low 3), 1.0W (Low 2), 0.3W (Low 1)

Modulation Type Variable Reactance : F2D, F3E

Maximum Deviation : ±5.0 kHz (F2D, F3E)

Spurious Emission :

- At least 60 dB down (@ High power)

- At least 50 dB down (@ Low 2 and Low 1 power)

Microphone Impedance : 2 kΩ

RECEIVER

Circuit Type :

- AM, NFM : Double-Conversion Superheterodyne

- WFM : Triple-Conversion Superheterodyne

IFs :

- AM, NFM : 47.25MHz (1^st), 450kHz (2^nd)

- WFM : 47.25MHz (1^st), 10.7MHz (2^nd), 1 MHz (3^rd)

Sensitivity :

- 0.2 μV for 12 dB SINAD (137-140 MHz, FM)

- 0.5 μV for 12 dB SINAD (300-350 MHz, NFM)

- 0.2 μV for 12 dB SINAD (350-420 MHz, NFM)

- 0.18 μV for 12 dB SINAD (420-470 MHz, NFM)

Selectivity :

- AM, NFM: 12 kHz/35 kHz (–6 dB /–60 dB)

- WFM: 200 kHz/300 kHz (–6 dB /–20 dB)

AF Output :

- 200 mW @ 8 Ω for 10 % THD (@ 7.4 V)

- 400 mW @ 8 Ω for 10 % THD (@ 13.8 V)

===========================================================
